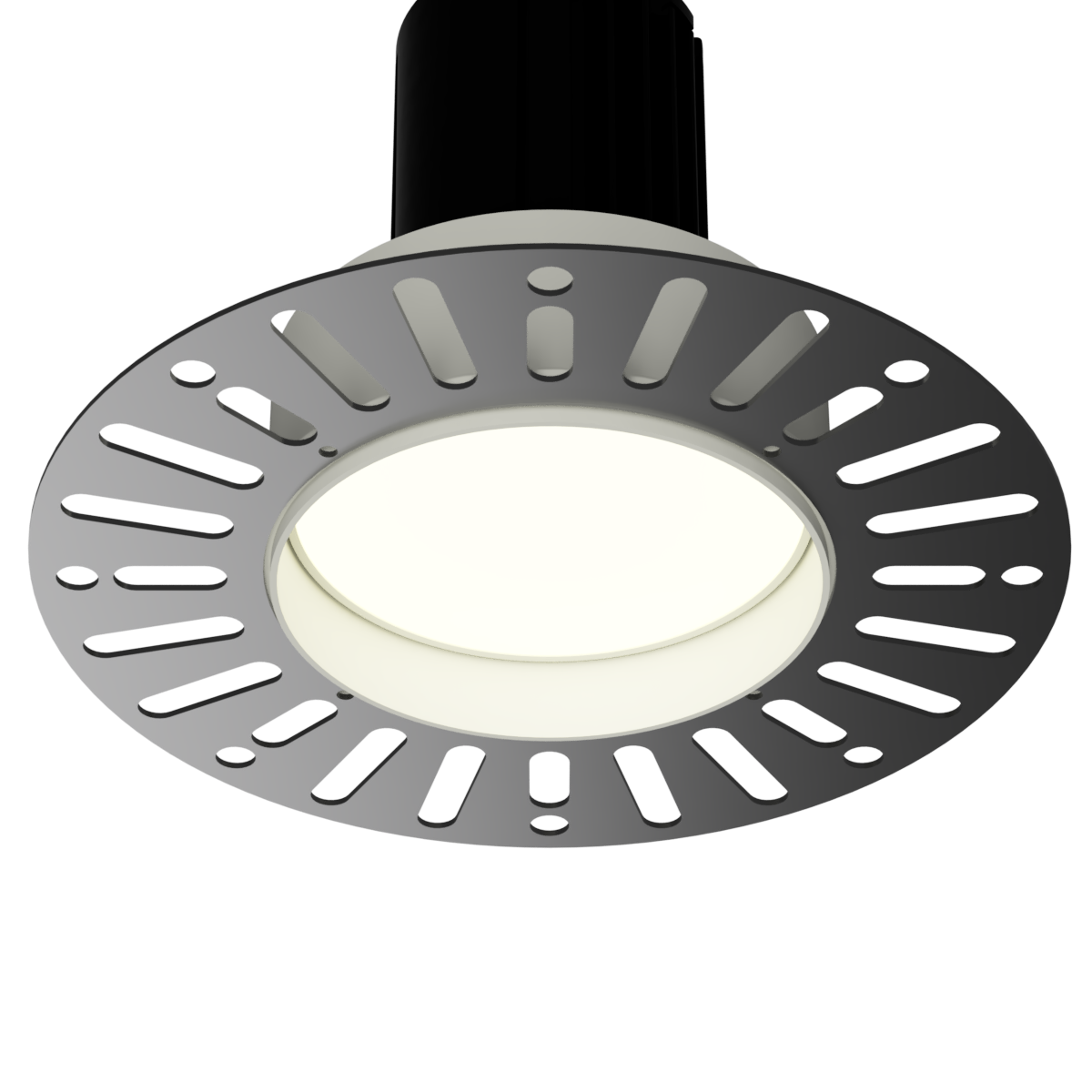

Ghost Trimless Recess


GTR Ghost Trimless Recess

75mm Adjustable Architectural Downlight

A perfectly proportioned low glare adjustable downlight with a large choice of dimmable Full Spectrum, High CRI and Dim to Warm LED light sources and control options.

Trimless plaster-in installation. Magnetic retention. The recessed opal diffusion lens provides even wide-angle light and minimises visual impact in the ceiling.

Colourbox modular design means clients can choose products from any of our luminaire families for seamless visual continuity.

Specifications

Type: Fixed architectural downlight
Warranty: FIVE years
Standard: BS EN 60598
IP65
Visible O/D: 75mm
Cut Out: 95mm

Light Sources
Spectrum Pure
Full Spectrum Very High CRI
12.8w 1200lm 98Ra CRI (R9:99)
CCT: 2700K, 3000K, 4000K
Optics: 110°
Driver: Remote Mains Dim (pre-wired), DALI, 0-10v

Spectrum Ambient
Dim to Warm Very High CRI
12.8w 1200lm 96Ra CRI (R9:99)
CCT: 3000K-1800K
Optics: 110°
Driver: Remote Mains Dim (pre-wired), DALI, 0-10v

AC7
Very High CRI with integral driver
9.5w 700lm 95Ra CRI (R9:74)
CCT: 2700K, 3000K, 4000K
Optics: 110°
Driver: Integral Mains Dim

Colourbox Mains Dim products are pre-wired to the relevant driver with a 0.35m LSZH mains cable and LIGHTS ON TESTED prior to leaving our workshop.




GTR Spectrum Datasheet

GTR AC7 Datasheet

Installation Manual

Ghost Photometric Pack
